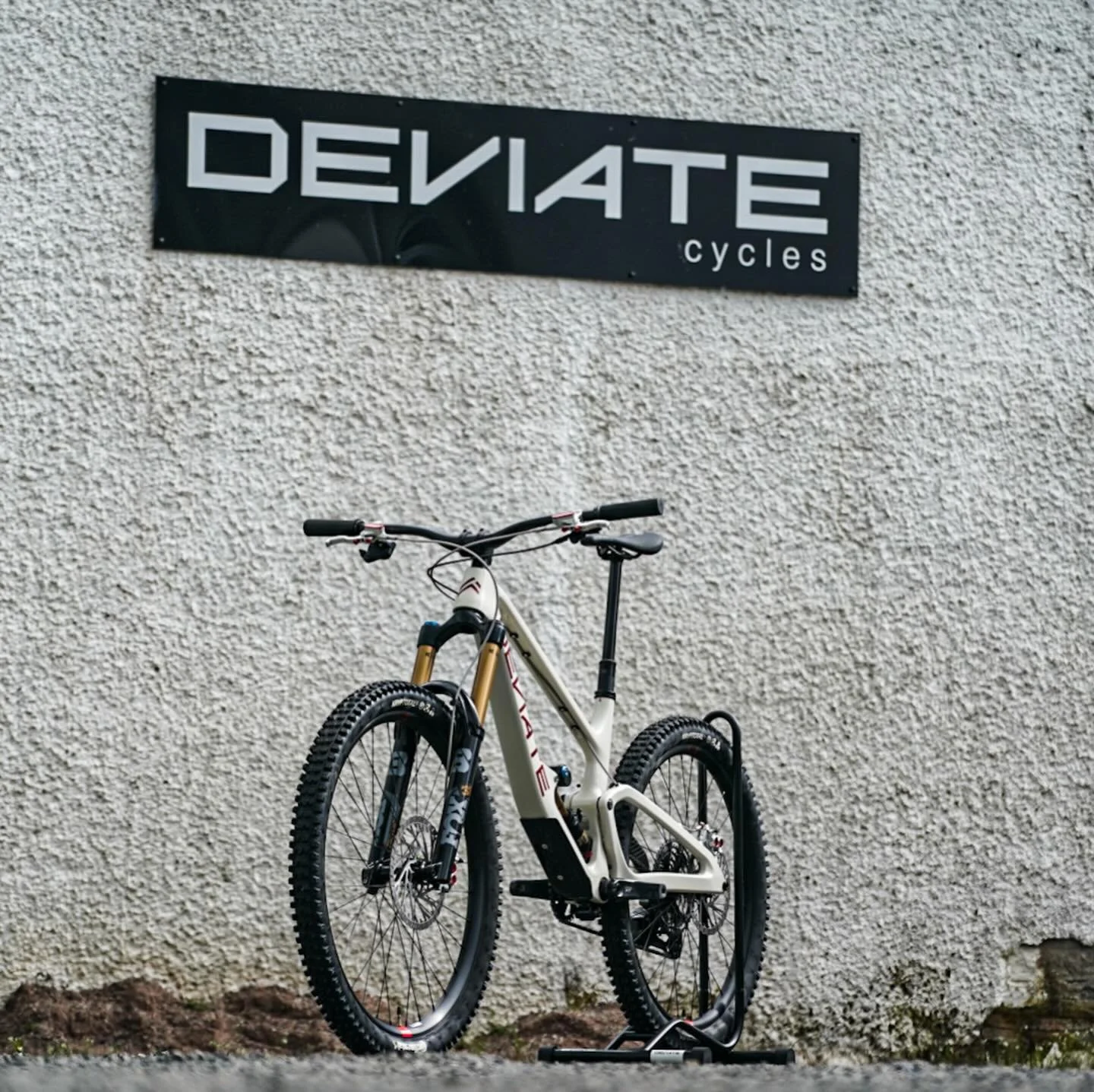

The Deviate Guide

Designed to Go Up and Down Mountains

Full Carbon Construction

Pinion C-Line 12 Speed Gearbox

160mm Rear Wheel Travel

Fully Sealed Bearings

Frame Weight: 2782g | Gearbox: 2100g

Singletrack Magazine Review

“The suspension and drivetrain in combination have created a bit of a lightbulb moment for me. I reckon Deviate has created something pretty special. If this was from a big name manufacturer, riders would be falling over themselves to hand over their cash.”

Gearbox Drive

A 12 speed Pinion C-Line gearbox provides reliable shifting performance.

Huge Gear Range

A 600% range offers the ability to spin up the steepest hills or crank down the fastest singletrack! SRAM Eagle is 500%. 12 speeds with even 17.7% spacing ensure there is always the perfect gear for the terrain.

No Derailleur

No vulnerable rear derailleur saving expensive replacement costs and major inconvenience.

Shift while Stationary

No need to pedal to engage a gear – select your gear at anytime. Never get caught in the wrong gear again!

Fully Sealed Drive System

Hermetically sealed gearbox results in significantly less maintenance than a traditional drivetrain system.

Superb Handling

Mass is positioned low and centralised for optimal handling and cornering.

Improved Ground Clearance

A small front chain ring achieves a high degree of ground clearance.

Unrivalled Suspension Performance

Gearbox drive allows huge benefits in suspension performance to be realised. Better suspension allows you to go harder, faster and longer!

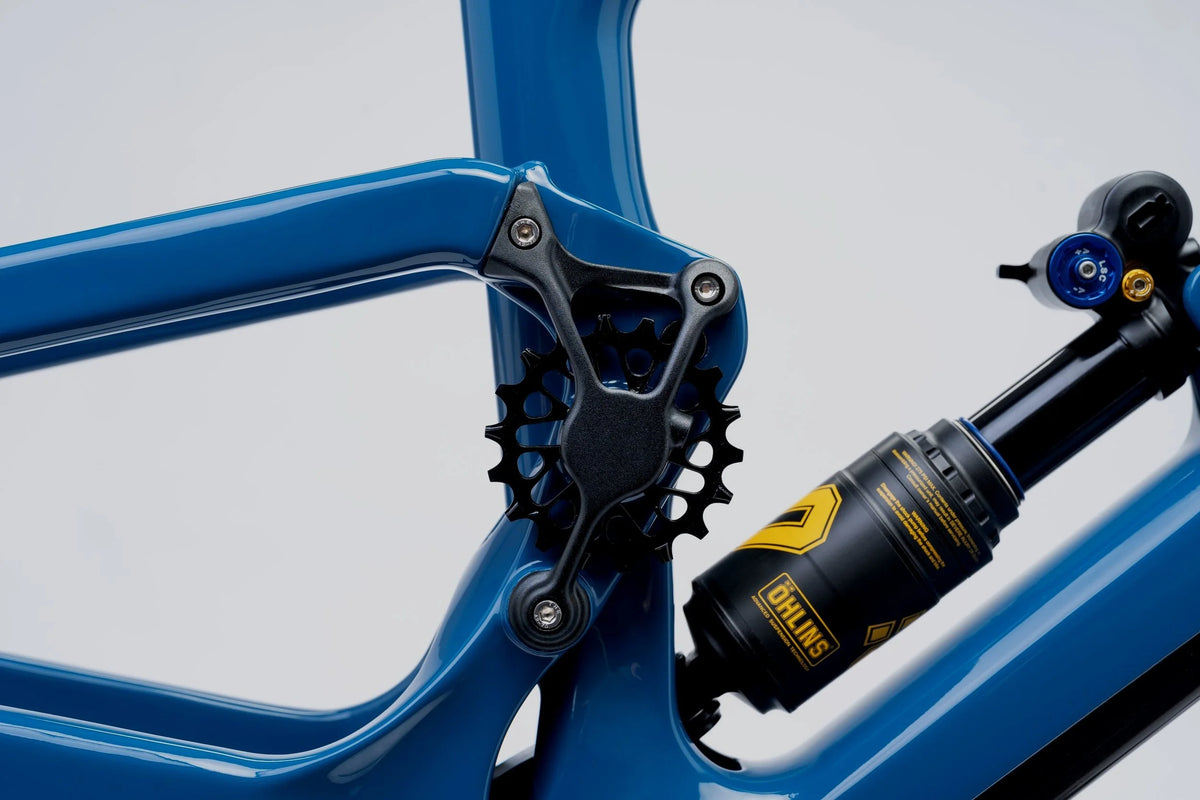

High Pivot Point

The Guide utilises a high pivot point which achieves a rearward axle path. This increases the compliance of the rear wheel as it can move away from impacts and square edged hits are absorbed more directly through the suspension maintaining forward momentum and improving traction. The rearward axle path allows the wheelbase of the bike to be maintained as suspension is compressed achieving consistent handling.

Zero Pedal Kickback

The design results in zero chain growth and therefore no pedal kickback. This allows continued and unimpeded pedalling through rough terrain. It also results in less fatigue on descents as legs do not have to absorb this pedal kickback.

Anti-Squat Optimised

As the gearbox based design maintains a constant chain line and chain length we can optimise the anti-squat characteristics across all gears. The system achieves approximately 110% anti-squat which results in a slight suspension extension under pedal input to increase grip on difficult climbs.

Low Un-sprung Mass

Using a gearbox shifts the drivetrain weight from the rear wheel to the centre of the bike, this reduces the un-sprung mass which results in more responsive suspension system.

Efficient Suspension

Unlike a derailleur (and particularly, a clutch rear mech) based system the suspension does not have to overcome chain tension.

Fully Sealed Bearings

We use top end Enduro double row, angular contact, max fill bearings on all pivot points. Furthermore all these bearings are situated behind twin lip wiper seals.

Specifications

  • Full high modulus carbon fibre construction
  • 27.5″ (650b) wheel size
  • 160mm of rear wheel travel
  • Frame Weight: Frame (M): 2782g | 12 Speed C-line Gearbox: 2100g
  • Supplied with highly tunable Cane Creek DBAir CS or DBAir Inline shock
  • Metric shock (210*55mm)
  • Pinion gearbox drivetrain (12 speed C-Line with Magnesium casing)
  • Integrated (and replaceable) chain tensioning system
  • Integrated (and replaceable) bash guard
  • Full internal cable routing
  • 31.6mm seatpost with internal cable routing
  • Enduro double row, angular contact, max fill bearings on all pivots
  • Twin lip wiper seals for all suspension pivots
  • Bonded rubber protection from rock strikes and chain slap
  • 2.7” tyre clearance

Currently we have Medium and Large frames available. We aim to produce a Small soon.

Medium: 5’7″ – 6’1″ (170cm – 186cm)
with 150mm dropper/170mm cranks inside leg: > 32.5″
with 125mm dropper/170mm cranks inside leg: > 31.5″

Large: 5’11” – 6’4″(180cm – 193cm)
with 150mm dropper/170mm cranks inside leg: > 33.5″
with 125mm dropper/170mm cranks inside leg: > 32.5″

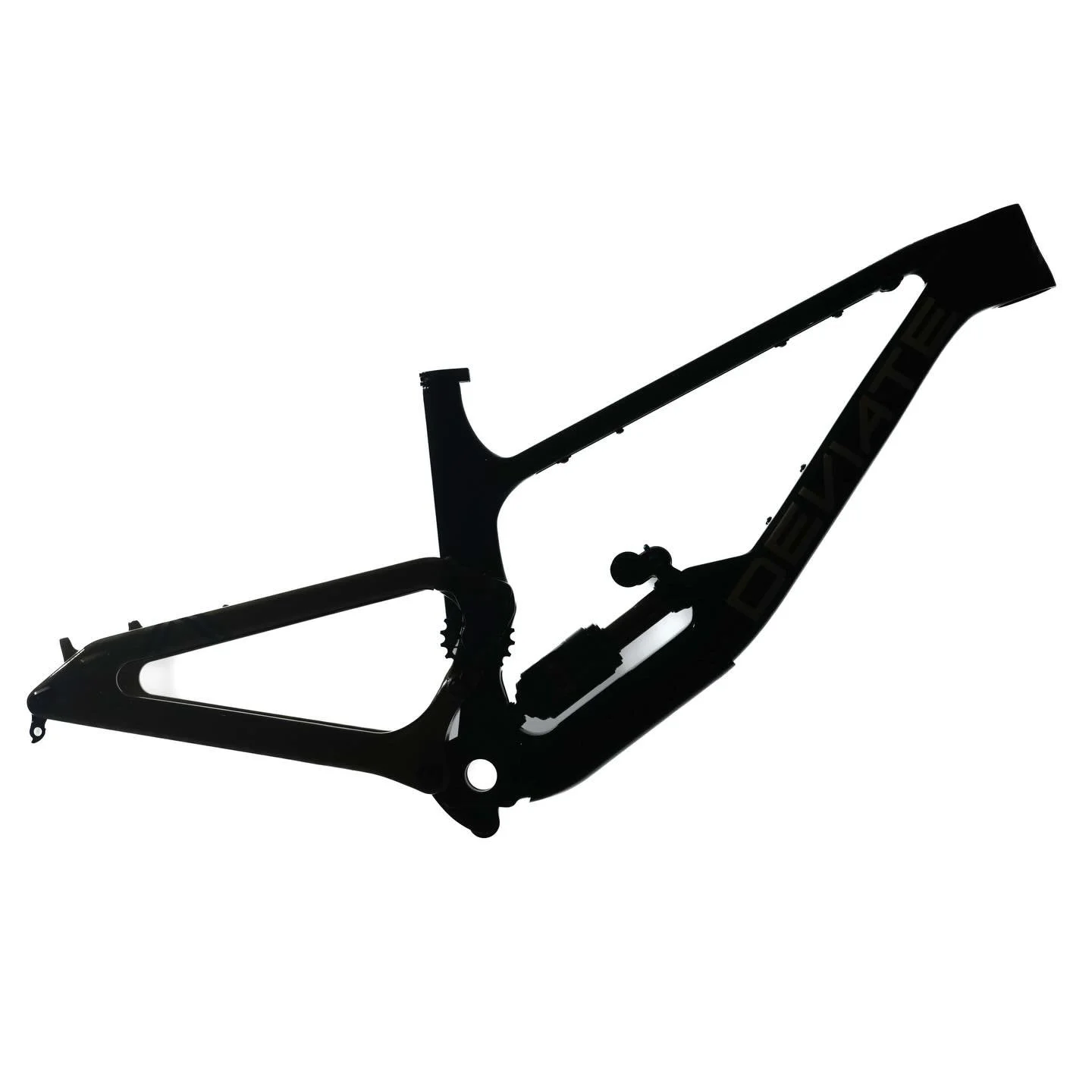

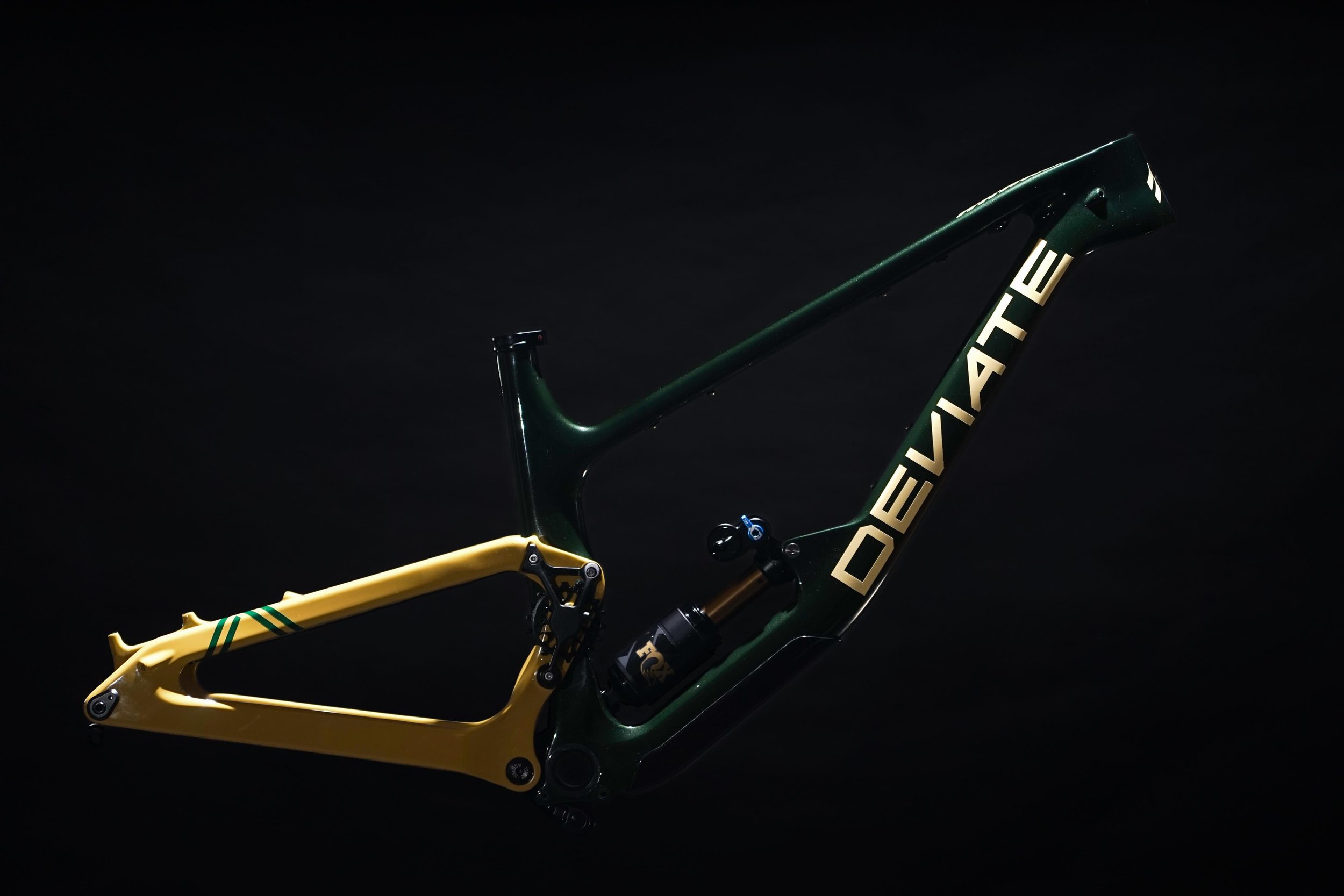

Frame

Frame Sizes Available: M, L
Frame Weight: Frame (M): 2782g | 12 Speed C-line Gearbox: 2100g
Rear Wheel Travel: 160mm
Wheel Size: 27.5″ / 650b
Rear Shock: 210mm * 55mm (Metric)
Shock Hardware: 15x8mm and 40x8mm
Rear Wheel: 135mm *12mm (Single Speed)
Steerer: 1.5″ > 1.1/8″ Tapered Inset Headtube (44mm/56mm)
Max Fork Travel: 180mm
Tyre Clearance: ~ 2.7″
Seatpost: 31.6mm (Insertion Depth: 280mm Medium, 320mm Large)
Seatpost Cable Routing: Internal Only
Seat Clamp: 34.9mm
Brake Mount Rear: IS
Max Rear Brake Disc: 203mm

Drivetrain

Drivetrain: 12 Speed Pinion C-Line Specific (with included spider and Deviate or aftermarket front chain-ring/rear sprocket)
Drivetrain Gearing Range: 600%
Drivetrain Gearing Steps: 17.7%
Drivetrain Cable Routing: Internal Only Push/Pull Cables
Drivetrain Shifter: Gripshift
Drivetrain Front Sprocket: Deviate 104 PCD 30T
Drivetrain Rear Sprocket: Deviate 30T

Deviate Guide Frame: 2 years
Pinion C-Line Gearbox: 5 years (with registration on Pinion’s website)

Build Options

£5799
Guide Alpine
  • Pinion C Line Drivetrain *
  • Cane Creek DBAir CS Shock
  • Cane Creek Helm AIR Forks - 160mm
  • 9point8 Fall Line 150mm Dropper Post with Digit Remote
  • Stans ZTR Flow MK3 Wheelset (Neo Hubs)
  • Cane Creek 110 Headset (Stainless Sealed Bearings)
  • Maxxis HR2 DD 3C Rear Tubeless
  • Maxxis HR2 EXO 3C Front Tubeless
  • Shimano XT Brakes (200/180)
  • Renthal Fatbar Carbon 35 Riser Bar 800mm/10mm
  • Renthal Apex 35 Stem 33mm
  • Fabric Scoop Radius Pro Team Saddle (Carbon rails)
  • Ergon GA2 Grips

Select options

£5699
Guide UK
  • Pinion C Line Drivetrain *
  • Cane Creek DBAir Inline Shock
  • Cane Creek Helm AIR Forks - 160mm
  • 9point8 Fall Line 150mm Dropper Post with Digit Remote
  • Stans ZTR Arch MK3 Wheelset (Neo Hubs)
  • Cane Creek 110 Headset (Stainless Sealed Bearings)
  • Maxxis HR2 EXO 3C Rear Tubeless
  • Maxxis HR2 EXO 3C Front Tubeless
  • Shimano XT Brakes (180/180)
  • Renthal Fatbar Carbon 35 Riser Bar 800mm/10mm
  • Renthal Apex 35 Stem 33mm
  • Fabric Scoop Radius Pro Team Saddle (Carbon rails)
  • Ergon GA2 Grips

Select options

£5999
Guide Fox
  • Pinion C Line Drivetrain *
  • Fox Float DPX2 Factory
  • Fox 36 Float Factory 160 FIT
  • Fox Transfer Factory 150mm
  • Stans ZTR Flow MK3 Wheelset (Neo Hubs)
  • Cane Creek 110 Headset (Stainless Sealed Bearings)
  • Maxxis HR2 DD 3C Rear Tubeless
  • Maxxis HR2 EXO 3C Front Tubeless
  • Shimano XT Brakes (200/180)
  • Renthal Fatbar Carbon 35 Riser Bar 800mm/10mm
  • Renthal Apex 35 Stem 33mm
  • Fabric Scoop Radius Pro Team Saddle (Carbon rails)
  • Ergon GA2 Grips

Select options

£3399
Frame Only
  • Pinion C Line Drivetrain *
  • Cane Creek DBAir Inline Shock
  • OR
  • Cane Creek DBAir CS Shock (+£100)
  • OR
  • Fox DPX2 Factory (+£200)

Select options
